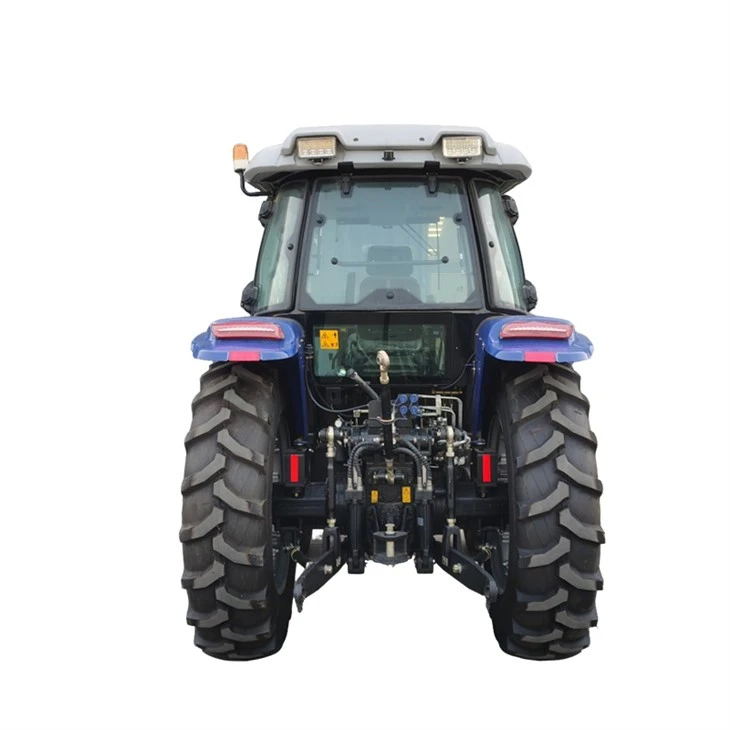

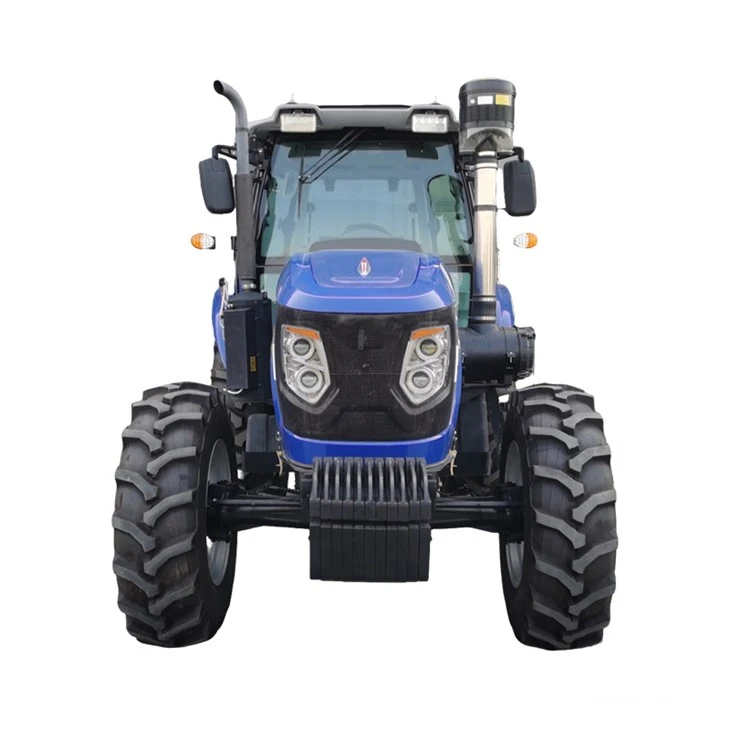

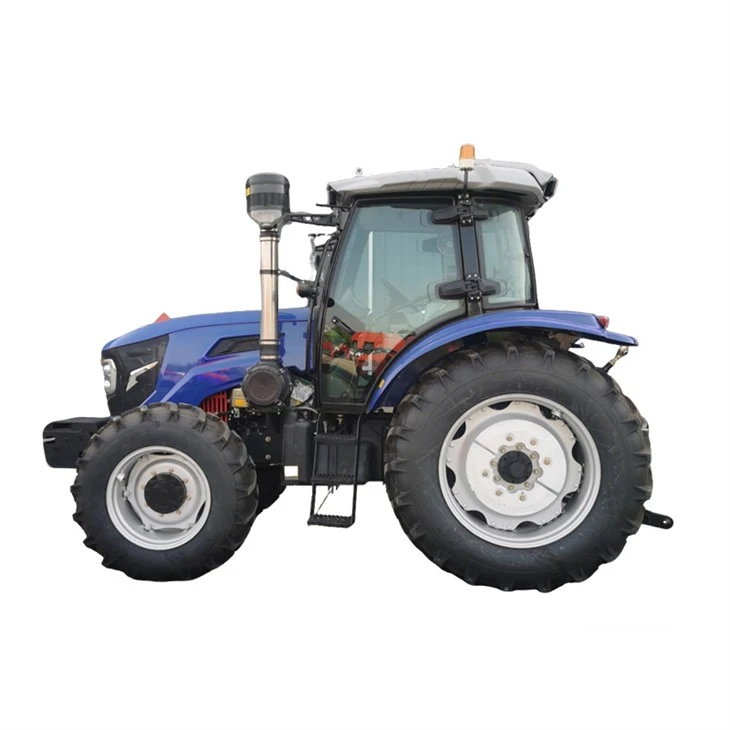

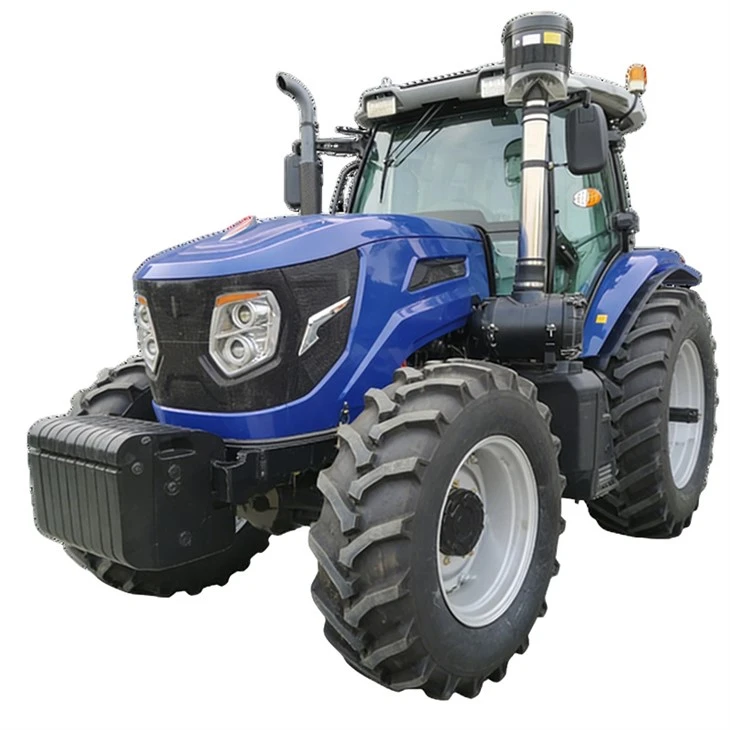

The 140 HP Garden Farm Tractor is designed for commercial orchards, vegetable farms, agricultural contractors, and large-scale farming operations. Powered by the proven Yuchai YC6J160-T302 6-cylinder engine, it delivers strong low-end torque, stable field performance, and excellent adaptability across different agricultural applications.
To meet varying customer requirements, two configurations are available:

ST1404DF

Optimized for deep tillage and heavy-duty traction.

ST1404TF

Designed for orchard operations with an adjustable wheel track.

Ideal Applications

Commercial Orchards

The ST1404TF offers eight wheel-track adjustment positions ranging from 1.6 m to 2.2 m, allowing operators to match various orchard row spacings while minimizing crop damage.

Large Vegetable Farms

High traction and stable power output make the tractor suitable for bed preparation, cultivation, seeding, and field management operations.

Deep Tillage Operations

The ST1404DF is built for demanding soil preparation tasks, including deep plowing, land leveling, and operation with wide tillage implements.

Optional Equipment

Category	Optional Items
Engine	Weichai engine, Yuchai 4-cylinder engine
Weight System	Front ballast, rear ballast (ST1404DF)
Packing	Replacement of simulation wheels for cab model packing (both models)
Auxiliary	Air compressor, swing traction device, quick hitch (ST1404TF only)

Technical Specifications

Item	ST1404DF	ST1404TF
Drive Type	4WD	4WD
Engine	Yuchai YC6J160-T302	Yuchai YC6J160-T302
Rated Power	140 HP	140 HP
Emission Standard	China Stage III	China Stage III
Clutch	Double-stage	Double-stage
PTO Speed	760 / 850 rpm	760 / 850 rpm
Gear Configuration	16F + 8R	16F + 8R
Maximum Rated Traction	≥32 kN	≥26 kN
Minimum Operating Weight	4420 kg	5480 kg
Steering System	Full Hydraulic Steering	Full Hydraulic Steering
Standard Tire Size	13.6-24 / 16.9-34	14.9-26 / 18.4-38
Wheelbase	2620 mm	2630 mm
Hydraulic Output	Double-way Valve (2 Groups)	Three-way Valve (3 Groups)
Cabin	AC Cabin	AC Cabin
Seat	Luxury Shock-absorbing Seat	Luxury Shock-absorbing Seat
Ground Clearance	450 mm	-
Overall Dimensions	5130 × 2250 × 2840 mm	5200 × 2480 × 3020 mm
Container Loading	2 Units / 40HQ	2 Units / 40HQ

Optional Configurations

To meet regional market requirements, the tractor can be customized with:

01/

Engine Options
Weichai engine
Yuchai 4-cylinder engine

02/

Weight Systems
Front ballast
Rear ballast (ST1404DF)

03/

Auxiliary Equipment
Air compressor
Swing traction device
Quick hitch (ST1404TF only)

04/

Export Packaging
Cab model packaging with replacement simulation wheels

Quality & Certification

Our manufacturing system complies with internationally recognized quality standards, and products can be supplied with certifications including:

CE Certification

ISO 9001 Quality Management System

Export inspection documents (upon request)

OEM & Dealer Support

We provide flexible cooperation programs for importers, distributors, and agricultural machinery wholesalers.

Available services include:

OEM branding
Custom color schemes
Dealer-exclusive configurations
Customized operator manuals
Spare parts packages
Technical documentation support

FAQ

Q: What is your MOQ?

A: One unit is available for sample orders, while container orders are recommended for distributors.

Q: What payment terms do you accept?

A: Normally 30% T/T deposit and 70% balance before shipment.

Q: Which trade terms are available?

A: EXW, FOB, CFR, and CIF are supported.

Q: What is the delivery time?

A: Usually 20–35 working days depending on quantity and configuration.

Q: Do you provide OEM service?

A: Yes, branding, colors, manuals, and packaging can be customized.

Q: Can spare parts be supplied together with the tractors?

A: Yes, spare parts packages can be shipped with the order.

Q: What warranty support do you provide?

A: Warranty service is provided according to the agreed export warranty policy.

Q: Is technical support available after delivery?

A: Yes, online technical assistance and maintenance guidance are available.

Q: What certifications can be provided?

A: CE, ISO 9001, and related export documents are available according to market requirements.

Q: How are the tractors packed for shipment?

A: Export-standard packaging and secure container loading procedures are used.

Q: Can I become a distributor in my country?

A: We welcome distributor and long-term dealership cooperation inquiries.

Q: How many tractors can be loaded in a 40HQ container?

A: Two units can be loaded in one 40HQ container.

Request a Wholesale Quote

Looking for a reliable supplier of the 140 HP Garden Farm Tractor?
Contact our sales team today for:

Distributor pricing
OEM solutions
Product catalogs
Spare parts programs
Shipping plans
Market-specific configurations

We will recommend the most suitable configuration based on your target market and customer requirements.
