Reliable Tillage Equipment for Efficient Soil Preparation

Prepare your fields for higher yields with durable and high-performance tillage equipment designed for modern agriculture. Our tillage solutions help farmers improve soil structure, manage crop residue and create optimal seedbed conditions while reducing operating costs.

Light-Duty Rotary Tiller for A 25 HP Tractor
This Light-Duty Rotary Tiller For A 25 HP Tractor is a tractor-driven implement used to break soil and prepare seedbeds for shallow secondary tillage operations.
view more

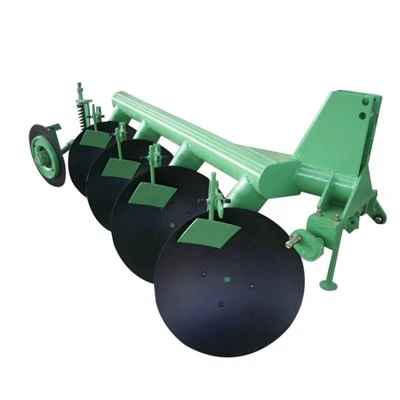

Disc Plough
The Disc Plough is a tractor-mounted implement using concave steel discs that rotate independently to cut, mix, and turn heavy and compact soils.
view more
Disc Harrow
The Disc Harrow is a tractor-drawn implement with adjustable steel discs for breaking clods, cutting crop residue, and preparing seedbeds.
view more
Rotary Tiller
A professional Rotary Tiller designed for efficient seedbed preparation in both dry land and paddy field conditions. It is suitable for tractors from 12–120 HP and engineered for distributors, importers, and agricultural equipment...
view more

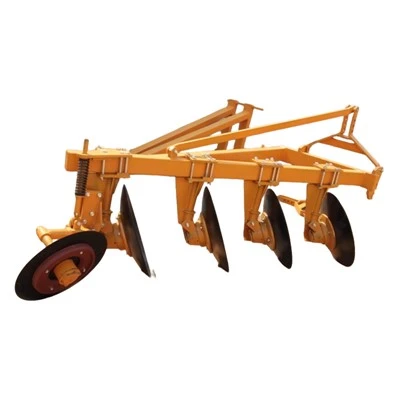

Disc Plow Vs. Moldboard Plow
We offer both Disc Plows and Moldboard Share Plows to match different soil conditions and tractor power ranges.
view more
Adjustable-Width Disc Harrow for Vineyards
The Adjustable-Width Disc Harrow For Vineyards is a tractor-drawn implement with hydraulic or mechanical shifting frames for inter-row soil tillage in variable-spaced vineyards.
view more
Disc Ridger for Vegetable Farming
The Disc Ridger For Vegetable Farming uses adjustable discs to form uniform ridges and beds for vegetable planting.
view more

Specifications(Model: 1LYT-325)

Item	Parameter
Model	1LYT-325
Working Width	750 mm
Working Depth	250–300 mm
No. of Disc	3 pcs
Disc Diameter	660 mm
Weight	420 kg
Matched Power	50–70 HP
Linkage	Three Point Mounted

Key Engineering Features

Heavy-Duty Frame Construction

Manufactured using premium-grade, high-strength structural steel. Reinforced stress points and robotically welded frames withstand high torsional loads in compacted or rocky terrains without deformation.

Premium Wear-Resistant Components

Equipped with heat-treated, boron steel disc blades and heavy-duty sealed bearings. These critical wear parts are designed for extended field lifespans, drastically reducing maintenance downtime and total cost of ownership (TCO).

Optimized Soil Penetration Angles

The disc curvature and entry angles are precision-engineered to maximize soil turning efficiency, reduce tractor draft resistance, and ensure clean crop residue mixing in a single pass.

Tillage Equipment Selection Guide

Farming Requirement	Recommended Equipment	Primary Agronomic & Commercial Benefit
Primary Tillage	Heavy-Duty Disc Plough	Deep soil inversion, burying weeds & fracturing hardpans.
Secondary Tillage	Tandem/Offset Disc Harrow	Superior residue chopping, mixing, and quick seedbed leveling.
Fine Seedbed Preparation	Rotary Tiller (Rotavator)	Achieves uniform, pulverized soil texture in a single pass.
Weed Control & Aeration	Agricultural Cultivator	Efficient mechanical weed management and soil aeration.
Compaction Removal	Deep Subsoiler	Fractures deep hardpans to improve root penetration and water infiltration.
Conservation Farming	Chisel Plough	Fractures soil while leaving protective crop residue on the surface.

Tractor Compatibility Guide

Matching tillage equipment with tractor horsepower is essential for maximizing field efficiency.

Tractor Power Range	Recommended Implement Width	Common Applications & Soil Types
30–50 HP	1.2–1.5 m	Smallholder plots, orchards, and light sandy soils.
50–80 HP	1.8–2.5 m	Medium-sized farms, standard loam, and mixed clay soils.
80–120 HP	2.5–3.5 m	Large-scale operations, heavy clay, and dense crop stubble.
120–180 HP	3.5–5.0 m	Commercial farming, heavy-duty folding implements.
180+ HP	5.0 m and above	Industrial-scale agriculture, broadacre trailing equipment.

Manufacturing & Quality Control

Quality is the foundation of our partnership. Our state-of-the-art factory operates under strict ISO 9001:2015 certification standards. Every implement undergoes a comprehensive 7-Step Quality Assurance (QA) Process before container loading:

Raw Material Inspection: Spectrographic analysis of incoming steel plate and tubing grades.

Precision Fabrication: Advanced CNC laser cutting and precision robotic welding for flawless structural integrity.

Welding Quality Inspection: Ultrasonic testing on critical high-stress load joints.

Surface Treatment Verification: Shot-blasting followed by electrostatic powder coating for ultimate rust and corrosion resistance.

Assembly Alignment Inspection

Rigorous tolerance checks on all moving parts and bearings.

Dynamic Performance Testing

Simulated field load testing to verify rotation and mechanical stability.

Final Pre-Shipment Approval

Comprehensive visual and dimensional verification against client-approved specifications.

Dealer & Distributor Program

We actively support agricultural machinery dealers and distributors worldwide.

OEM & ODM Manufacturing

Full support for custom color matching, technical specification modifications, and structural adjustments tailored to your regional soil conditions.

Private Label Service

Build equity in your local market by leveraging our manufacturing infrastructure with your own brand name and logos.

Global Marketing Kit

Access high-resolution product photography, detailed localized catalogs, video demonstrations, and cross-sectional technical drawings.

Reliable Spare Parts Program

We maintain a dedicated warehouse stock of high-wear parts (discs, bearings, tines, scrapers) ensuring priority 24/48-hour dispatch to support your local after-sales network.

Flexible Supply Chain Logistics

FCL container load optimization to maximize space and lower ocean freight costs per unit.

FAQ

Q: What tillage equipment is best recommended for heavily compacted clay soil?

A: We highly recommend our deep subsoilers or heavy-duty chisel ploughs. They are specifically designed to shatter deep pan layers down to 500mm, improving drainage and root development without bringing subsoil to the surface.

Q: How do we determine the correct working width for our regional market?

A: The optimal width depends heavily on your region's average tractor horsepower, soil density, and field topography. Please contact our engineering team with your target market's tractor profiles, and we will provide a customized product mix recommendation.

Q: Do you provide custom OEM/Private Label branding for international tenders?

A: Yes. We have extensive experience supporting distributors with customized specifications, specialized paint coatings, and private labeling required for commercial tenders and government agricultural projects.

Q: What is your policy and availability regarding replacement wear parts?

A: We guarantee long-term parts availability for every model we manufacture. Consumable wear parts (such as boron discs and shanks) can be ordered alongside your machinery shipment or dispatched fast-freight to ensure your customers experience zero downtime.

Q: Can your equipment handle tough, stony, or root-heavy soil conditions?

A: Yes. For stony or harsh conditions, we offer upgraded models equipped with auto-reset spring security systems or shear-bolt protection to prevent structural damage upon hitting underground obstacles.

Q: Do you export worldwide and assist with shipping logistics?

A: Absolutely. We export our agricultural machinery globally. Our logistics team handles full export documentation, containerization optimization, and works with leading freight forwarders to deliver FOB, CIF, or CFR terms to your preferred port.

As one of the most professional tillage equipment manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy advanced tillage equipment for sale here from our factory. We also accept customized orders.
